— Marine Cathodic Protection

ZINC ANODES

Sacrificial zinc anodes engineered for cathodic protection of hulls, tanks, and submerged steel structures — available in welded hull, tank, washer, and rubber-mounted configurations to suit every marine and industrial application.

Home  /  Products  /  Zinc Anodes

About Our Zinc Anode Range

Zinc anodes are the industry standard for sacrificial cathodic protection in seawater environments. By corroding preferentially in place of the protected metal, they extend the service life of ship hulls, ballast tanks, jetty piles, heat exchangers, and underwater fixtures — preventing costly galvanic corrosion of the parent structure.

Our zinc anode range is supplied as ZINCALLOY grade, manufactured to recognised marine specifications and complete with embedded mild-steel inserts or M-size fixing bolts as appropriate. From compact 50 mm washer anodes for bolted fittings to heavy 40 kg welded tank anodes, every variant ships ready for direct installation. Custom lengths and configurations are available on request.

Washer Welded Hull Heavy Duty Hull Tank Anode Rubber Type
50 mm OD Zinc Washer Anode 50mm OD M10 — Singapore Marine Sacrificial Anode for Bolted Fittings

Zinc Washer Anode

Type: Washer Serial
  • Outer Diameter: 50 mm
  • Thickness: 10 mm
  • Hole Diameter: M10
  • Application: Bolted fittings, propeller shafts, rudders
Request Quote

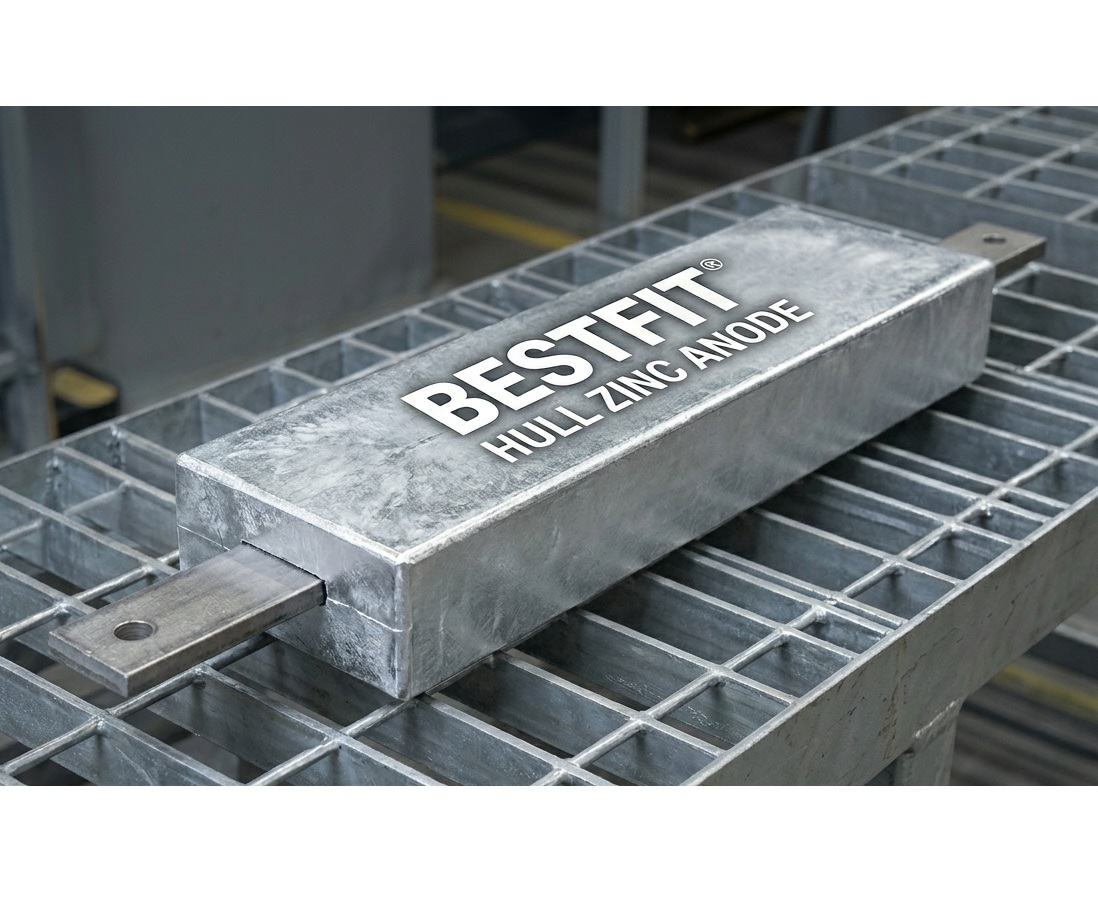

H-17Z · 24.6 kg Welded Hull Zinc Anode H-17Z 24.6kg — Singapore Cathodic Protection ZINCALLOY Anode

Welded Hull Zinc Anode

Type: H-17Z · Stand-off Flatbar
  • Overall Length (A): 700 mm
  • Body Length (B): 550 mm · Width (C): 130 mm
  • Thickness (D): 65 mm
  • Core: 50 × 9 mm mild steel insert
  • Nett Weight: 24.6 kg · Gross: 27.0 kg
Request Quote

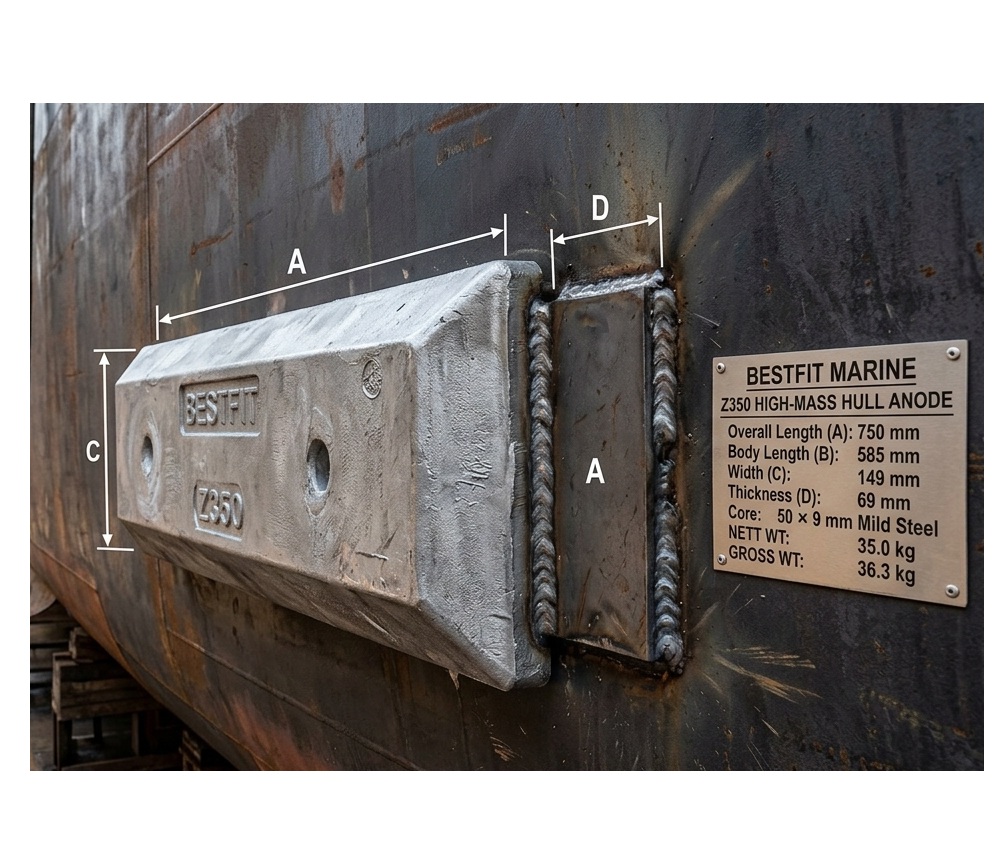

Z350 · 35 kg Heavy-Duty Welded Zinc Hull Anode Z350 35kg — Singapore Marine ZINCALLOY Sacrificial Anode

Heavy-Duty Welded Zinc Hull Anode

Type: Z350 · High-Mass Hull
  • Overall Length (A): 750 mm
  • Body Length (B): 585 mm · Width (C): 149 mm
  • Thickness (D): 69 mm
  • Core: 50 × 9 mm mild steel insert
  • Nett Weight: 35.0 kg · Gross: 36.3 kg
Request Quote

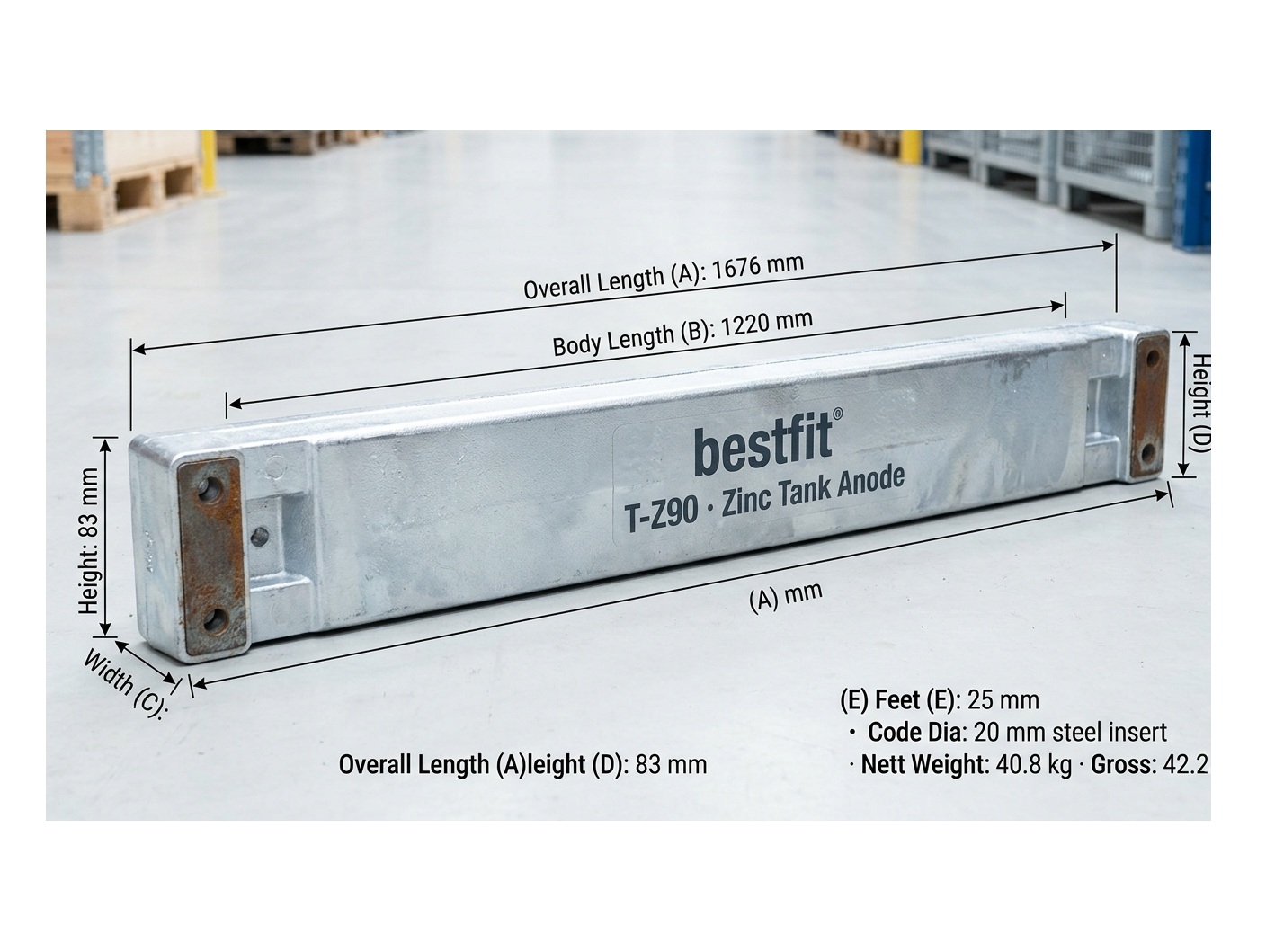

T-Z90 · 40.8 kg Zinc Tank Anode T-Z90 40.8kg — Singapore Ballast Tank Sacrificial Anode Supplier

Zinc Tank Anode

Type: T-Z90 · Tank / Ballast
  • Overall Length (A): 1676 mm
  • Body Length (B): 1220 mm · Width (C): 79 mm
  • Height (D): 83 mm · Foot (E): 25 mm
  • Code Dia: 20 mm steel insert
  • Nett Weight: 40.8 kg · Gross: 42.2 kg
Request Quote

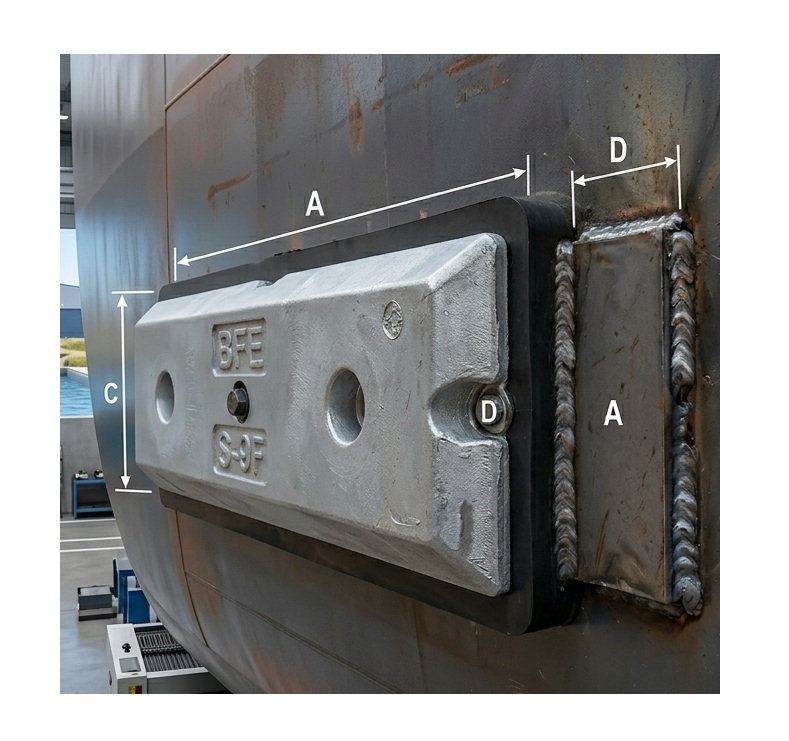

S-9F · 13.9 kg Rubber-Mounted Welded Hull Zinc Anode S-9F 13.9kg — Singapore Marine Cathodic Protection for Coated Hulls

Welded Hull Zinc Anode (Rubber Type)

Type: S-9F · Rubber Mounted
  • Length (A): 300 mm · Width (B): 150 mm
  • Base (C): 270 mm · Thickness (D): 50 mm
  • Rubber-backed for vibration isolation
  • Nett Weight: 13.9 kg · Gross: 14.6 kg
  • Application: Hulls with painted / coated surfaces
Request Quote

Why Choose Our Zinc Anodes?

High-purity ZINCALLOY castings supplied with marine-grade inserts and ready for installation.

High-Purity Alloy

Cast from certified ZINCALLOY conforming to marine cathodic-protection grade specifications.

Seawater Optimised

Designed for cathodic protection in seawater and brackish water — ideal for hulls and tanks.

Ready-to-Install

Supplied with embedded mild-steel inserts or M-size fixing bolts for direct welding or bolting.

Full Size Range

From 50 mm washer anodes up to 40+ kg tank anodes — and custom lengths on order.

Need a Custom Anode Spec?

Send us your hull/tank dimensions, service life target, and seawater conditions — we'll recommend the right zinc anode configuration and quantity for your project.

Get Custom Quote
